Combined Big bag discharge station with bag intake station and control screening

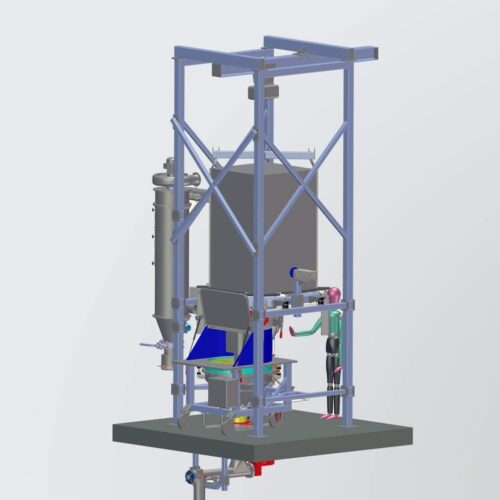

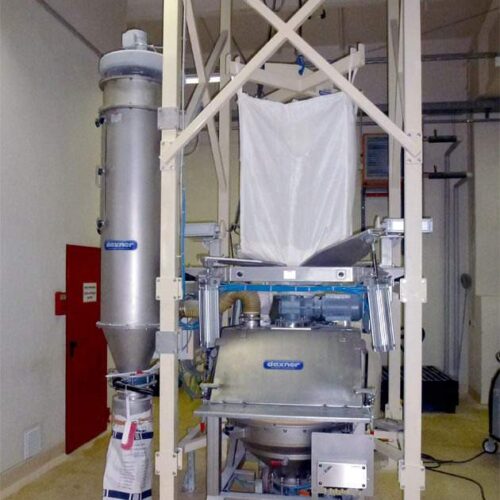

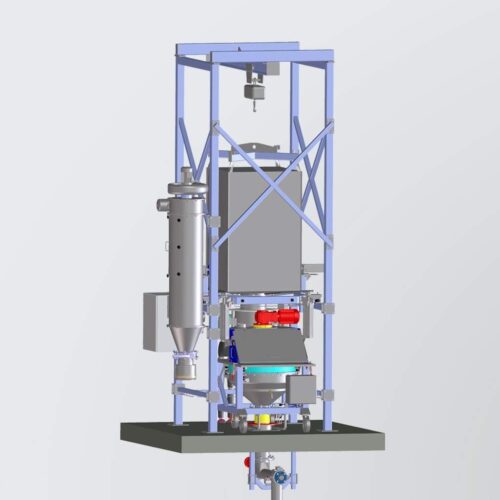

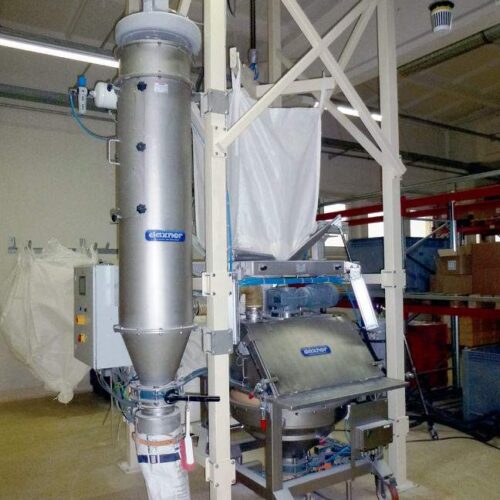

Daxner developed an innovative system solution for a manufacturer of bakery ingredients:  A big bag discharge station combined with the bag intake station Vib&Press.


Daxner's control screening machine VIB & PRESS offers an innovative processing technology for the gentle and fine screening of sensitive, slightly clumpy or fatty products.  Its successful application in many industries has induced further advancements: The VIB & PRESS COMBI can be directly fed with Big bags besides bag intake.


During the screening process two processes engage with one another: Parallel to the screening, which is executed by a vibrating screen (VIB), the product is pressed through the screen (Press) by a slowly rotating stirring discharger. Even if small mesh widths are used, the screen will remain free of residue and will be simultaneously cleaned due to the vibrations. Lumps and agglomerations are hence gently reduced.


For the discharge of products with poor flow characteristics an efficient Big bag discharge system has been developed with sturdy, special arranged massagers. 4 paddles press on the Big bag and induce a continious discharge. The manual double walled system enables the big bag connection. A hose filter with radial ventilator ensures a dust-free environment.
