Silo- & dosing facility
for dairy products

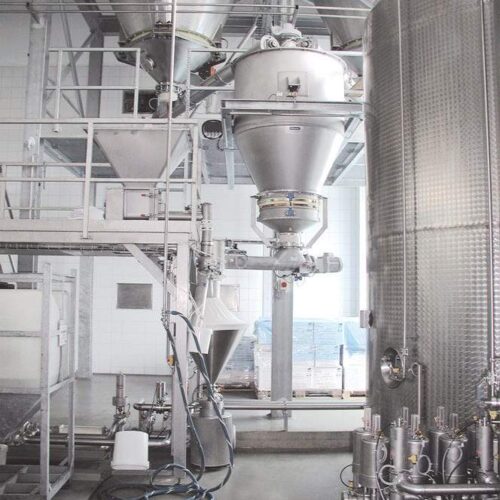

Silo- and dosing facility for powder components in the production of dairy products.



DESCRIPTION

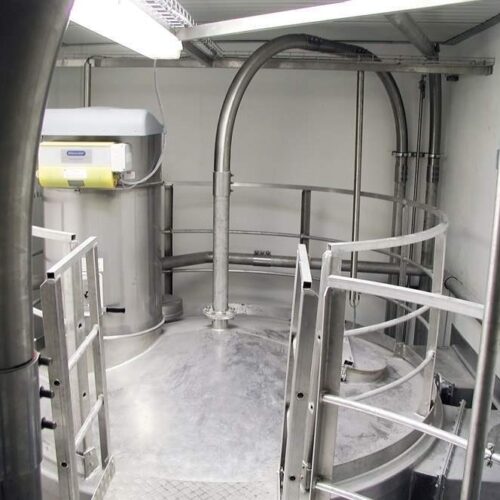

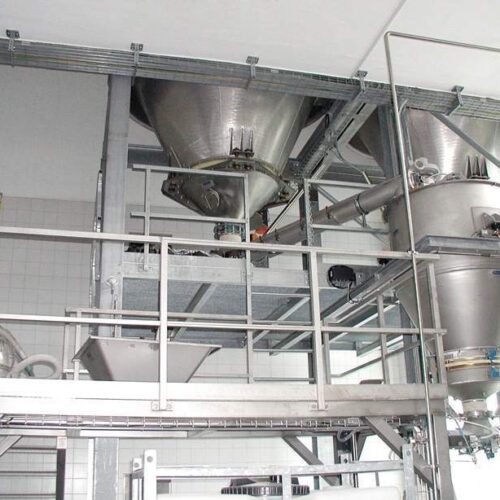

The silo- and dosing facility consists of two round silos, each with a volume of 55 m3 for crystal sugar and milk powder, and a tanker truck filling pipe. The silo-headroom is equipped with moisture-control.

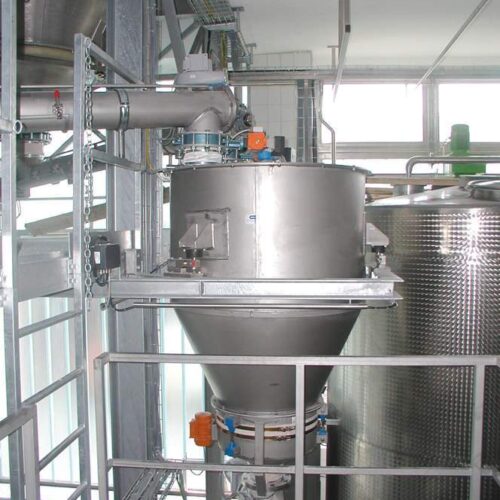

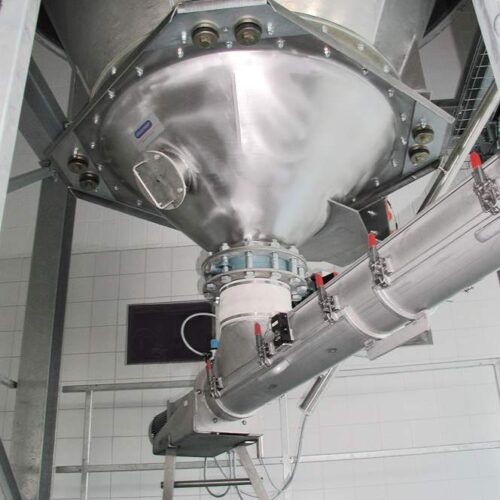

The product is discharged by a vibro bin discharger and conveyed through dosing screw conveyors to the weighing bin (volume 1000 liters with electronic weighing cells).

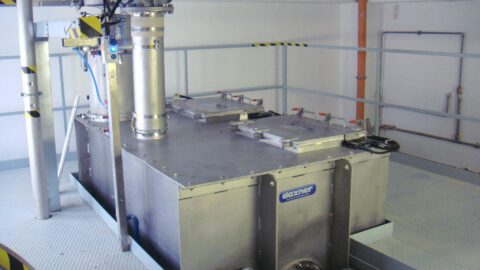

A dosing screw conveyor doses the weighed components continously and gravimetricly into the powder mixers. The stabilizers are continuously and volumetricly dosed into the powder mixer by a small components dosing station.



The facility is designed in compliance with the ATEX regulations or HACCP - IFS standards.








key components

for this solution

Dosiersysteme und Verwiegesysteme
Dosing & Weighing
